Detailed description:

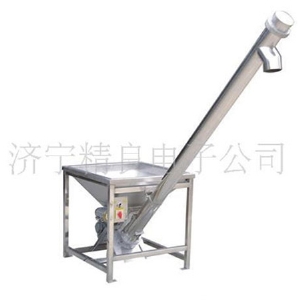

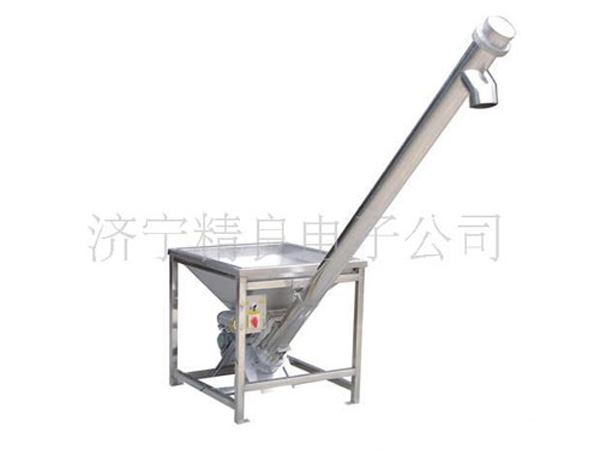

Vibration type spiral feeder, spiral elevator, screw feeder

The JL-T1 spiral feeder is mainly used for feeding powder and granular materials, suitable for feeding equipment with high requirements in industries such as food, chemical, building materials, plastics, and packaging, reducing dust, reducing labor intensity, and improving labor efficiency.

According to the material, it can be divided into two types: stainless steel and carbon steel.

It can be divided into large and medium-sized according to volume.

Special requirements can be customized.

Characteristics of Spiral Feeding Machine:

Automatic feeding and automatic stopping;

The feeding motor and vibration motor are controlled by their respective switches, and the vibration amplitude can be adjusted. The entire spiral can be easily disassembled and cleaned.

The feeding height is determined according to user requirements and workspace, and the machine can move freely, with fast feeding and reliable safety

The soft connection between the spiral and the material barrel and the silo can be easily disassembled;

The silo is equipped with a vibration motor to automatically feed the material into the spiral;

Technical parameters of spiral feeding machine:

Conveyor height: 1600mm (can be customized according to special requirements)

Power supply: AC380V 1500W (customizable 220V standard voltage)

Whole machine weight: 150kg

Storage bin capacity: 100-300kg

Conveying capacity: 500-3000kg/hour

Container capacity: 120L

The size of the screw feeder bin is 860 × 755 × 840mm
